Aero →

RealTime Engine Sound Playback Module 5.00 5

New!
RealTime Engine Sound Playback Module Sound Out this NEW Module
In stock
£36.64 ×

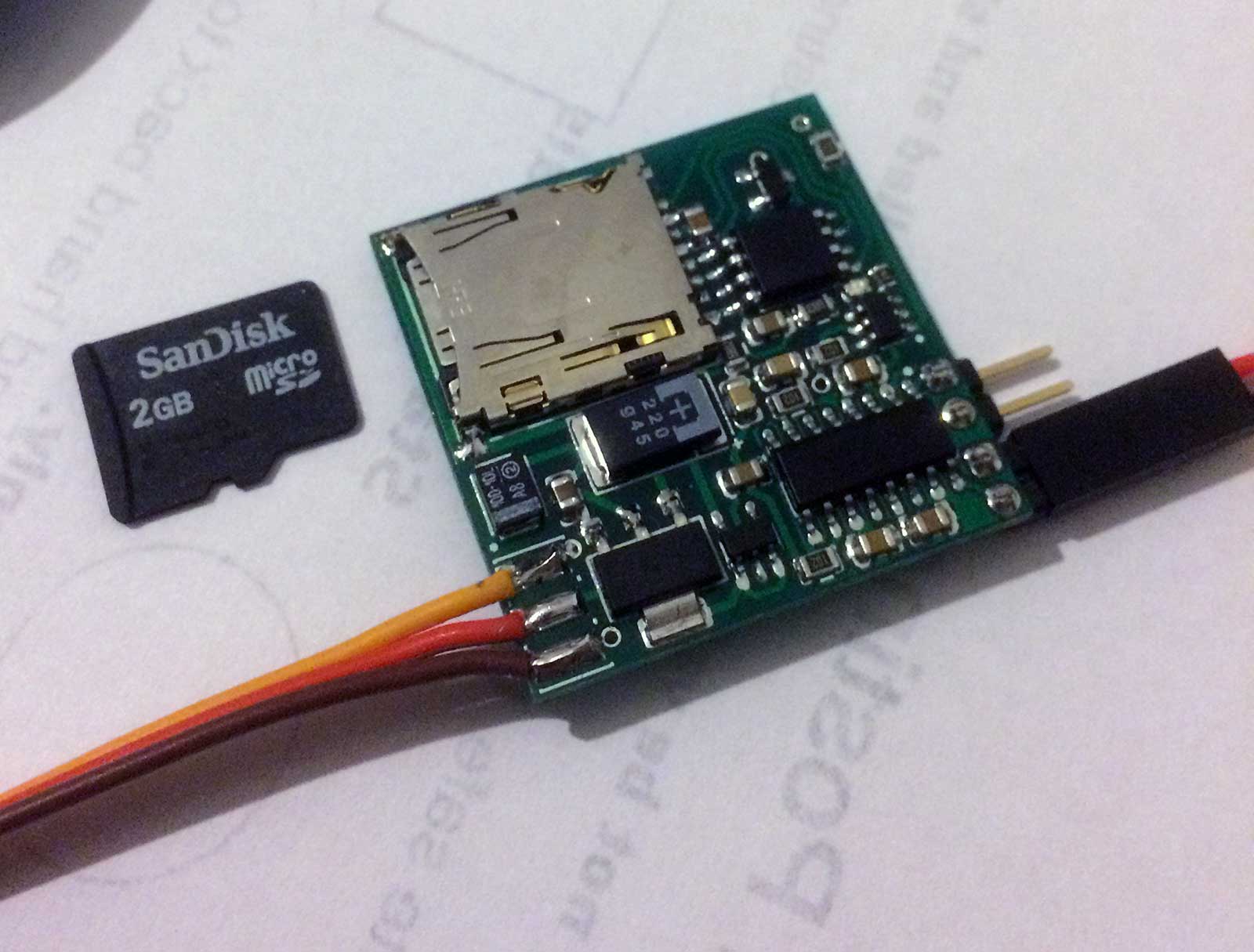

A Real-Time Sound Playback Module to Playback your own Sound Recordings

Introducing another of our latest products in Model Radio Control Sound Modules, another innovative Module reproduces Engine Sounds Sirens, Foghorns, in fact any sound you can hear from your own sound library on your computer or download files converted to WAV format and transferred to the SD Card will play back in high quality 16bit resolution. At only 34g including both speakers makes it ideal for electric aircraft.


Can Playback the Engine Startup and up to a 30 minute Engine Run-time Recording

Features

  1. Plays back your own sound recordings from an SD card
  2. The recording duration can be as long as you want, (we have run sound files over 30 minutes in length)
  3. Triggered by a standard RC On/Off channel
  4. Up to 5W audio output over two speakers
  5. Supports standard 2Gb micro SD
  6. High Intensity Activity Indicator
  7. Lightweight 7g (Module) 20g (with 1 Speaker) 34g (with 2 Speakers)
  8. 30mm x 30mm Footprint

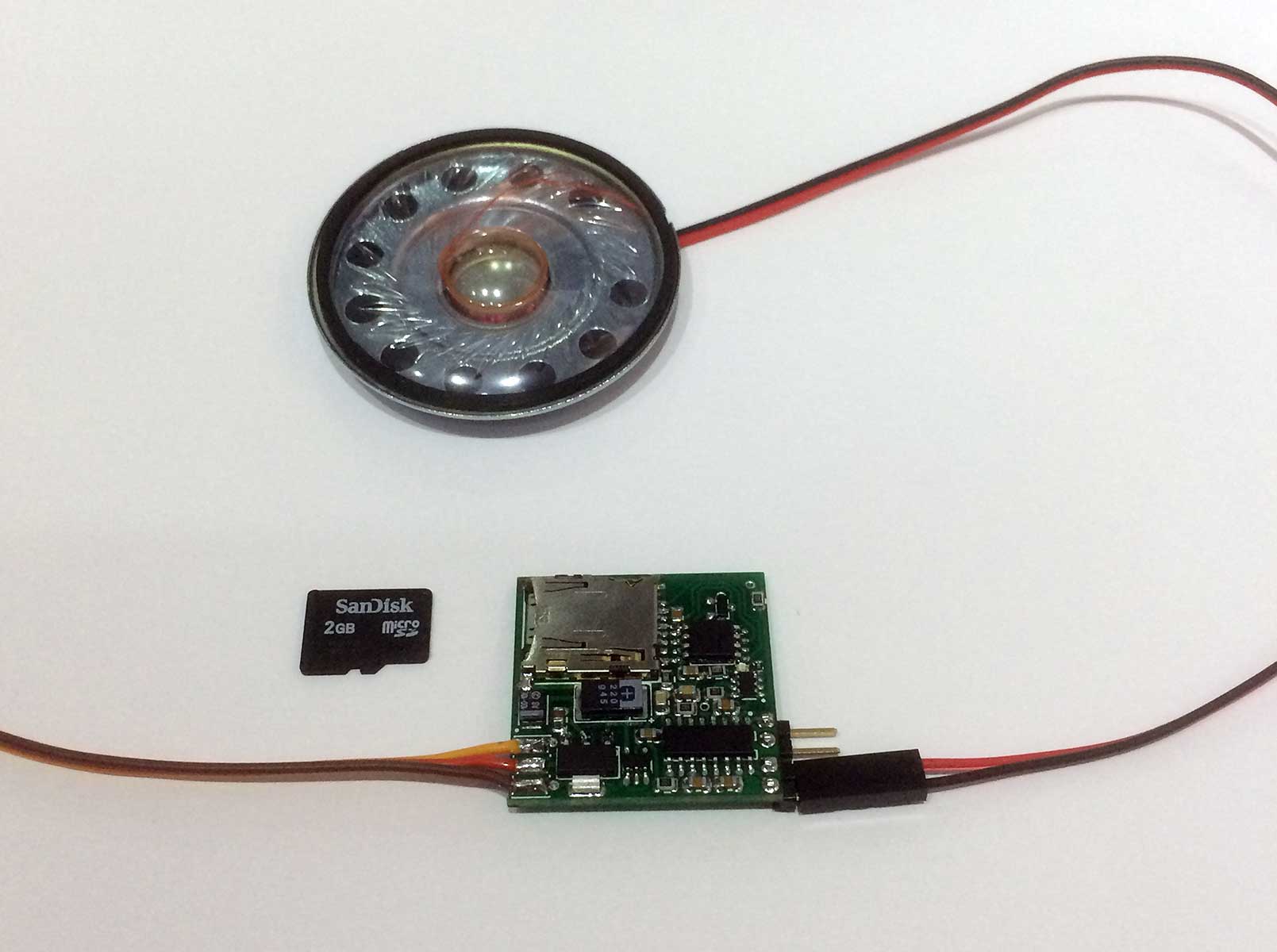

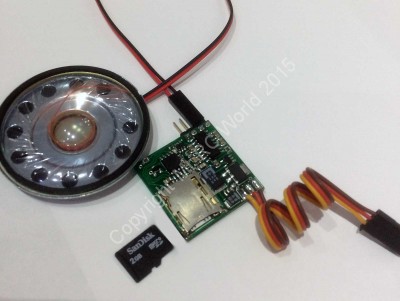

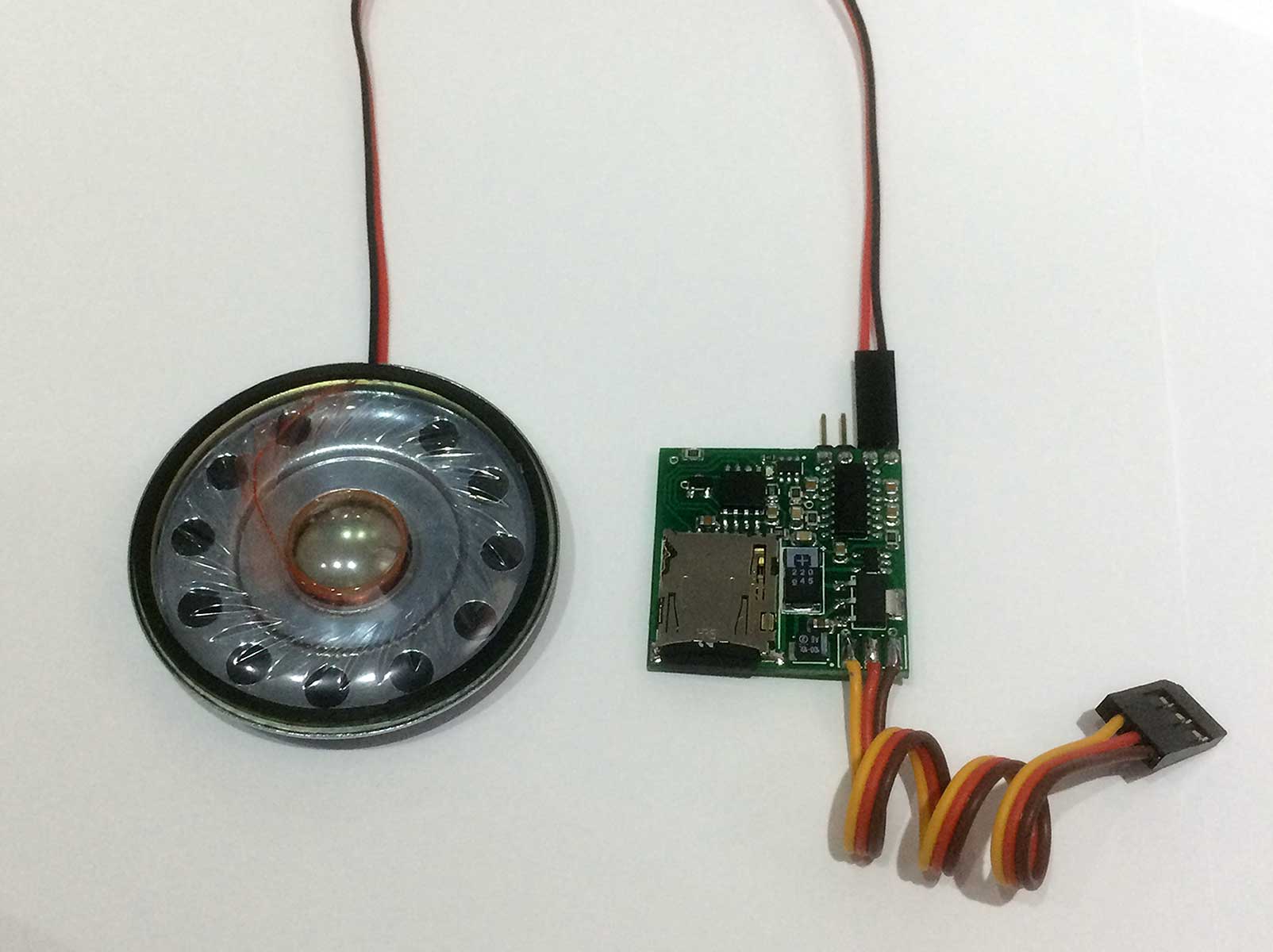

  9. Supplied as standard with 1 (ONE) Speaker Assembly ( Second speaker ordered from the Options above)

A Run on Power Up Module is also available for Static and Non Radio Controlled Projects at no extra cost. Please message us for this feature.


RC Lead 150mm
Weight 7g
Control Voltage 5.5v - 16.5V
Current Draw 250mA Nom (11mA Quiescent)

Typical Demo 20 second playback samples (contains a security overtone)

Scania Marine 12 Cylinder Engine

Volvo Penta D16 HD Propulsion

Cummins 6 Cylinder Marine

4 Cylinder Cessna Skylark 172 (50 Sec Sound Clip)

Engine Sounds are available in 20 minute run length

Adobe Reader mnemonic Download the Product Information Sheet

This is a hand crafted Surface Mount Technology (SMT), professionally designed all British module, built with top qualityRoHS (Restriction of Hazardous Substances Directive) high specification components. RoHS Logo Vector Download

























Categories: Aero Marine Model Submarine Truck/Car Accessories Sound Modules

RealTime Engine Sound Playback Module reviews

Average customer rating: (5) 5.00 out of 5 stars

2
0
0
0
0
3
no rate
  • Twin Otter
    By January 22, 2024 12:46

    I recently bought the sound module with twin speakers to fit into my Hangar 9 Twin Otter which is electric. I created my own wave file from real turbo start up and run sample. To enhance the wave file I reduced the turbine hiss using Goldwave at the point where the props would be turning at idle. To increase the bass level of prop noise I placed the speakers in a 50mm card board tube adjusting the length to fine tune the lower frequencies. I am well pleased with the result.

  • Real Time Engine Sound Playback)
    By July 4, 2022 15:54

    Good morning
    Many thanks for my Order that has just arrived (Real Time Engine Sound Playback) this is the second one that I have from you. The other purchased about two years ago, plus one that has the paddle wheeler boat sound built in. Very happy with these Sound cards. Only yesterday my son-in-law downloaded a boat whistle with steam engine sound for this new generator, required for my seven paddle wheelers and three stern wheelers.

    John Egerton

    Queensland
    Australia

  • Very Impressed
    By February 13, 2022 12:40

    I have just bought one of these and my friend was so impressed, he asked me to get him one. Very impressed. Alan Gillett

  • Sound Module
    By November 13, 2020 16:01

    Hello Mr RC World.

    I have been having tremendous fun with the sound kit.

    I took your advice and backed up the various tracks (well I think that happened by accident) because when I turned one on I couldn't turn it off...so I was at sea without a paddle….but with the Scania at full throttle. There was a bit of a panic but I eventually escaped the roar of engines then…I couldn't get the micro SD out of the jaws of the Vanja USB….it was worse than a crocodile and the micro card ended up in two pieces.

    After a couple of days on Amazon (and playing the backed up tracks with Audacity) I got some replacement micro SD cards and a tame new crocodile and it's working really well......Audacity a great toy……. and the crowning glory was the sound amplification with just one toilet tube.

    Caramba.

    Congratulations and very many thanks, Brilliant!

    Gareth Jones

  • As good as it gets!
    By May 21, 2018 10:56

    This review is somewhat late in submission, however after acquiring several units, testing Keith on most if not all occasions I am in a good position do so.

    The sound unit,which is plug and play,used with either one or two speakers is a great piece of kit, affordable, small in size and yet delivers very good sound effects. The level of quality is enhanced further by trial and error as to how and where you position the unit. I have 3 units working in my model boat and the reproduction is top notch in my view.

    I recommend the sound unit and this company to you without question!

Read all 5 reviews on RealTime Engine Sound Playback Module
