Dive Pump Controller

In stock
£18.99 ×

*** NEW FEATURE***

***Active FailSafe****
This latest feature allows your ballast to be dumped automatically if the RC Signal is proven lost or if the signal quality has failed or is very poor. Allows you to recover your vessel automatically on RC signal loss.

A Heavy Duty RC Dive Pump Controller designed to control your Ballast Pump simply and efficiently both Flood and Dump control on one RC Channel.

Introducing our latest product in Radio Controlled Motor Controllers, this innovative Module efficiently gives you a Positive Reverse Switching Action specifically designed for the control of a high current Reversing Dive Pump.

Features

  1. Massive 10A at up to 125v DC Motor Current Control
  2. Onboard Forward & Reverse Activity Indicators
  3. Switched Outputs are Neutral At Standard 1.37ms - 1.5ms (Centre/Dead Stick)
  4. D/S Frg4 4oz Gold Plated PTH PCB
  5. Full Specification Rohs Components
  6. Colour Coded 'FoolProof' Connections


RC Lead 150mm
Weight 465g
Control Voltage 4.8v - 16.5V
Current Draw 72mA Nom (8mA Quiescent)
Dimensions LxWxH (excluding RC tail) 44mm x 33mm x 24mm

Adobe Reader mnemonic Download the Product Information Sheet

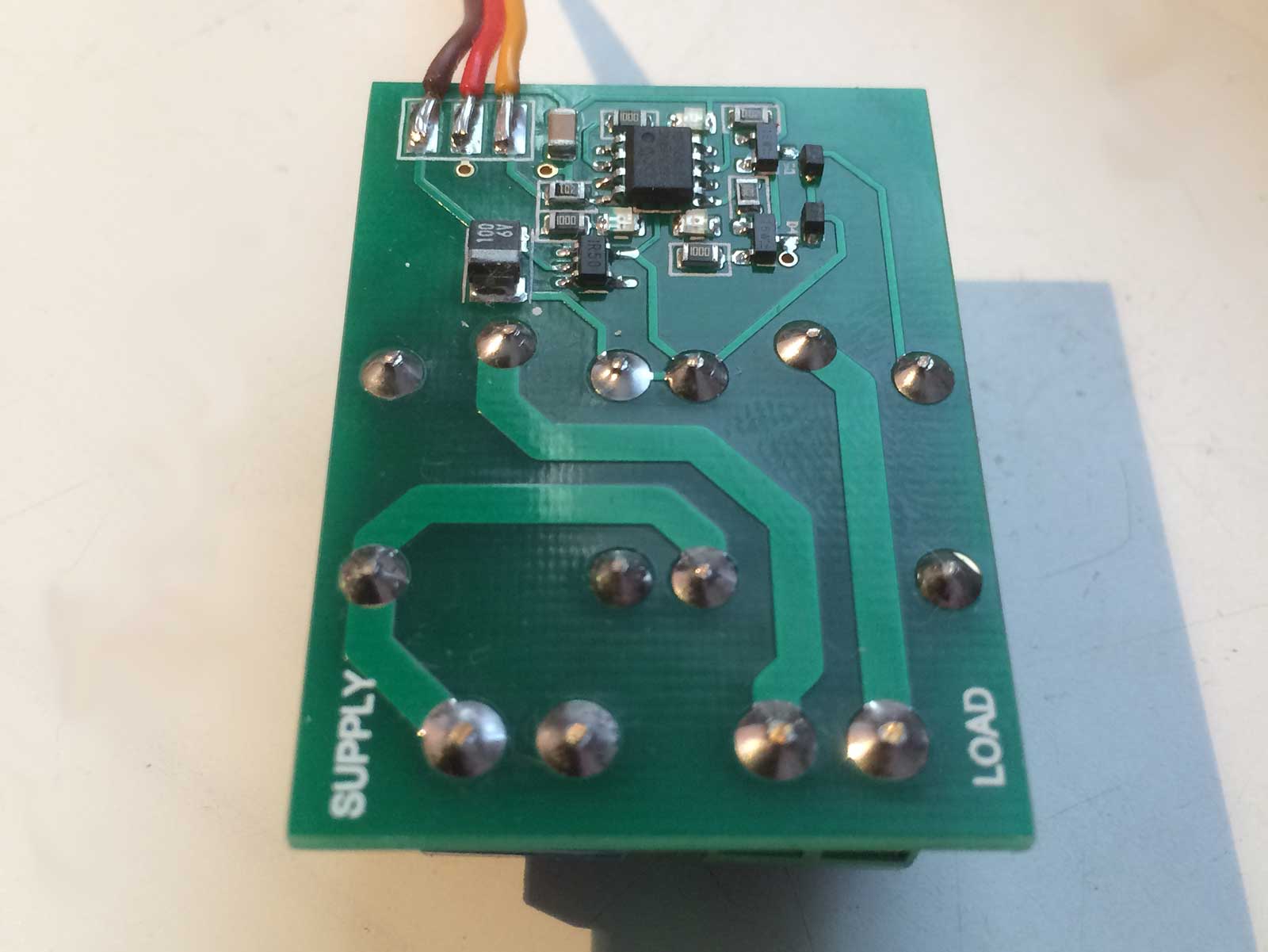

This is a hand crafted Surface Mount Technology (SMT), professionally designed all British module, built with top qualityRoHS (Restriction of Hazardous Substances Directive) high specification components. RoHS Logo Vector Download

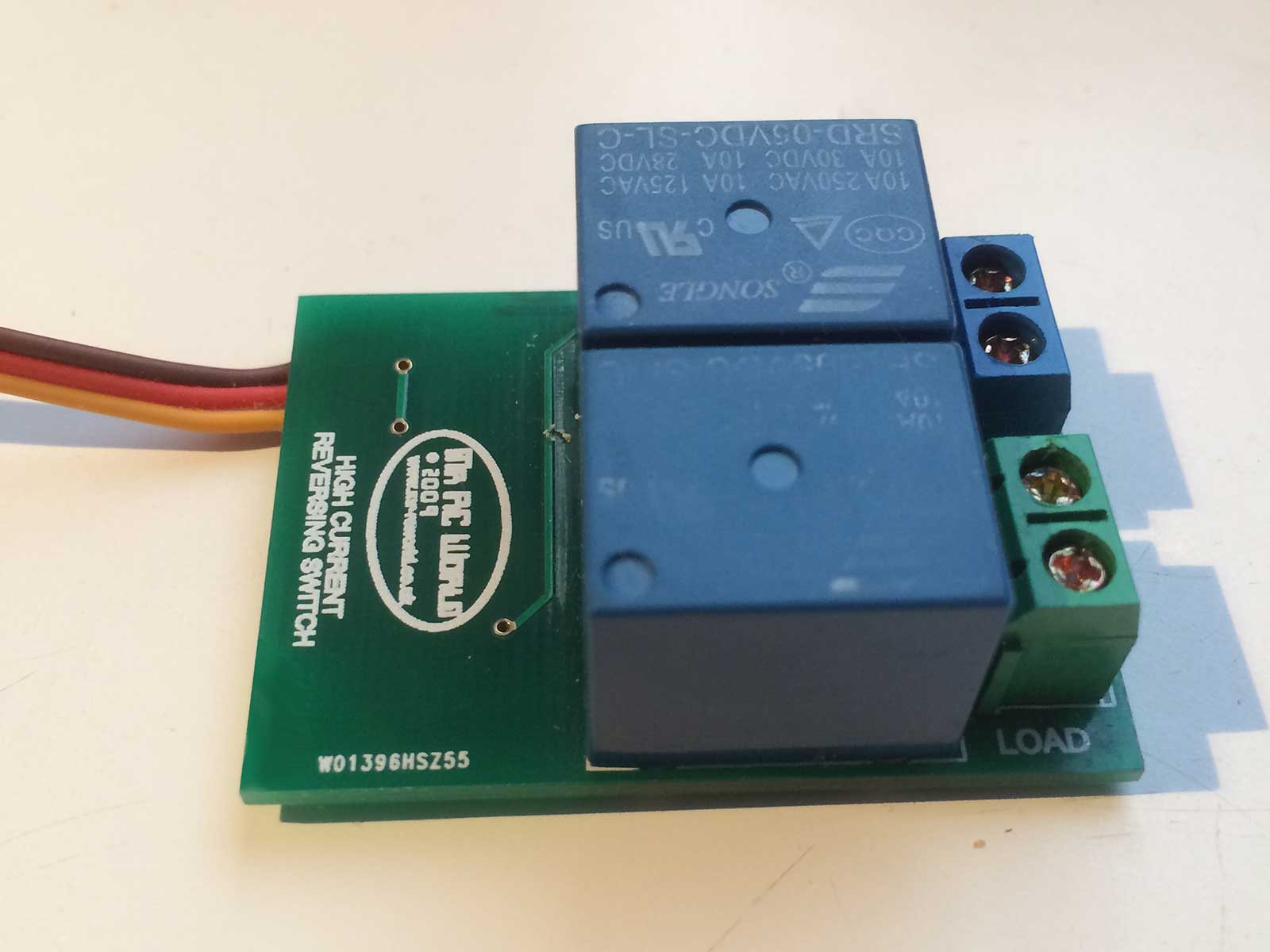

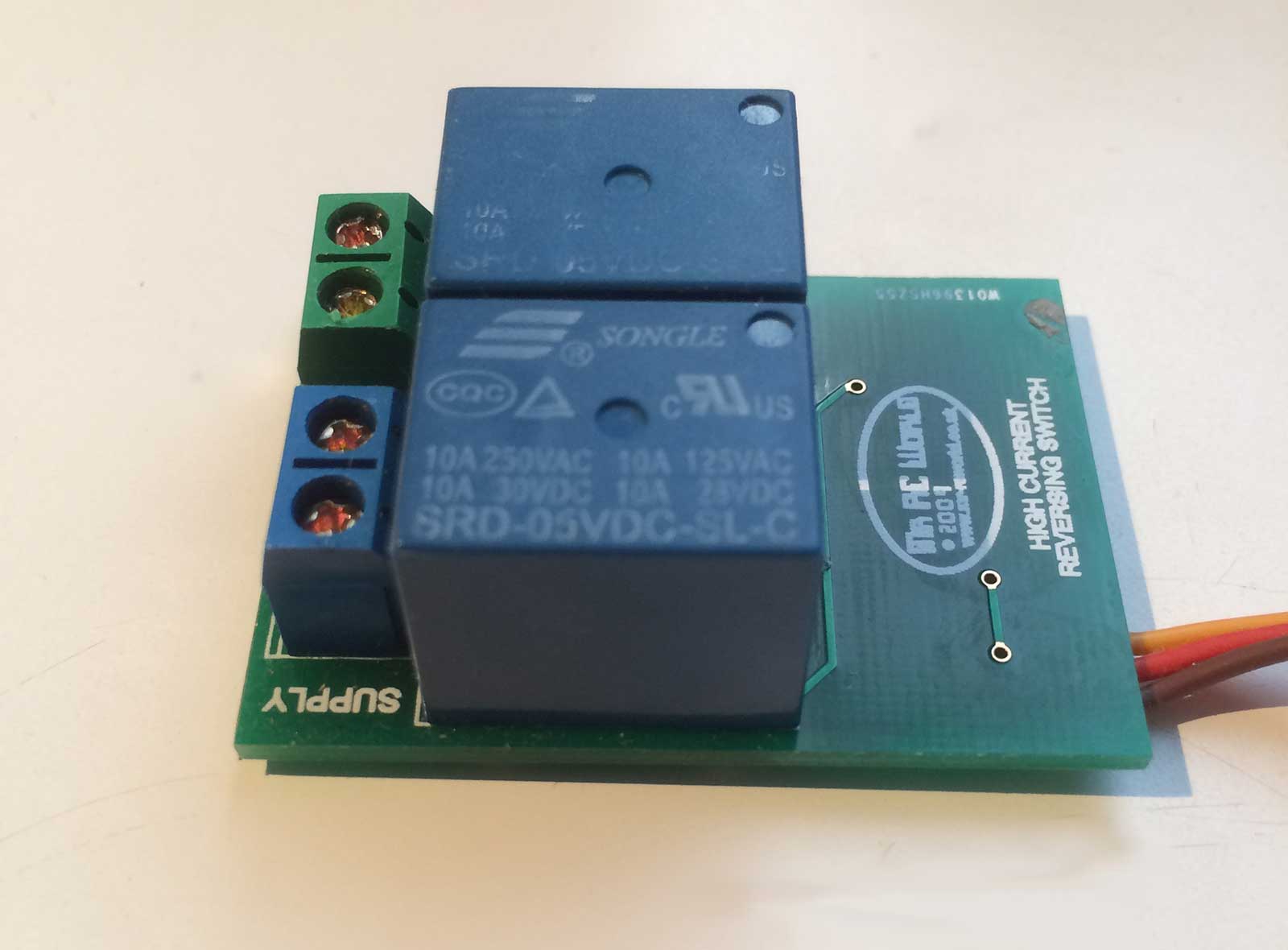

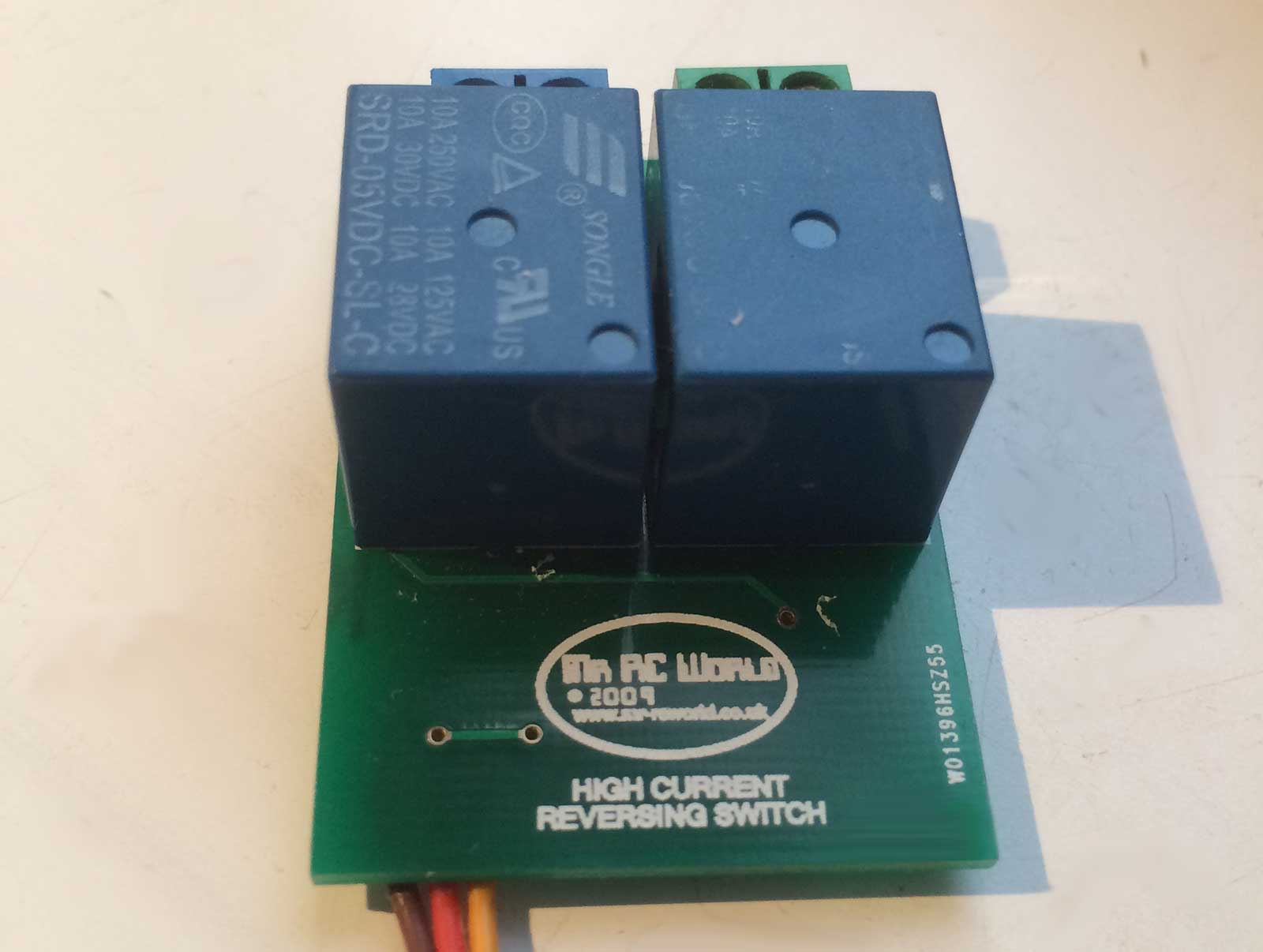

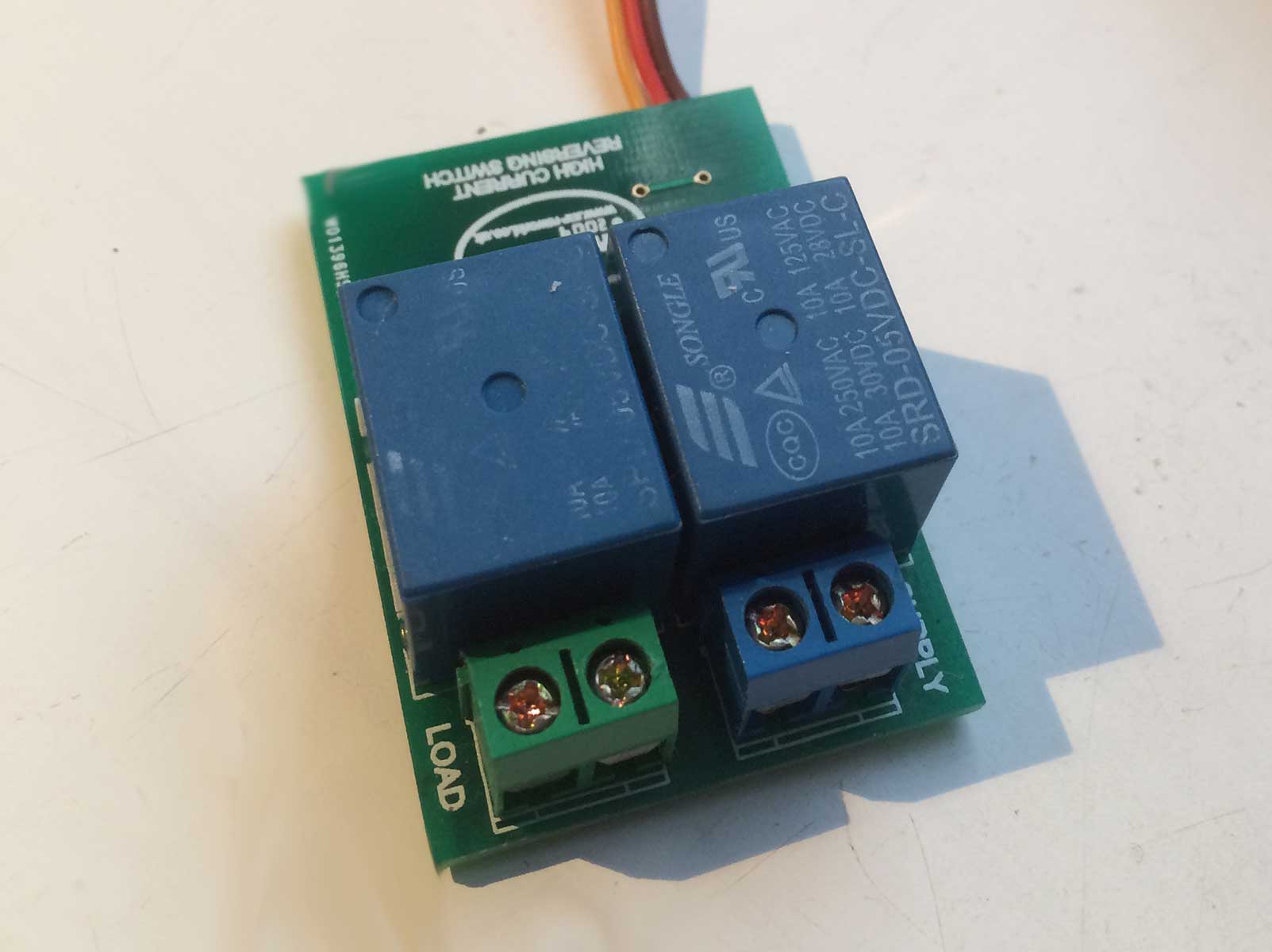

HIGH CURRENT POWER SWITCH

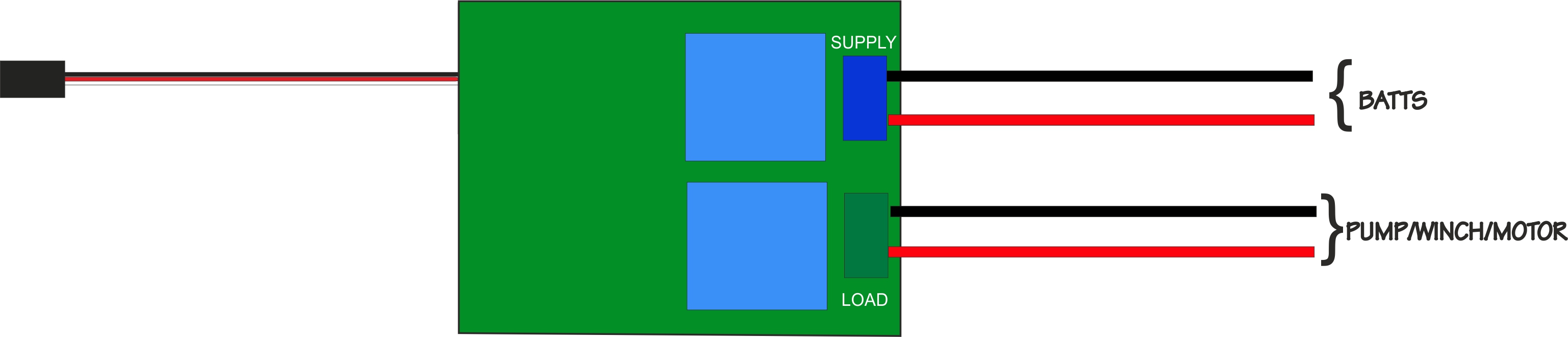

BASIC WIRING DETAILS
