Dual Latching Relay Switch

New!

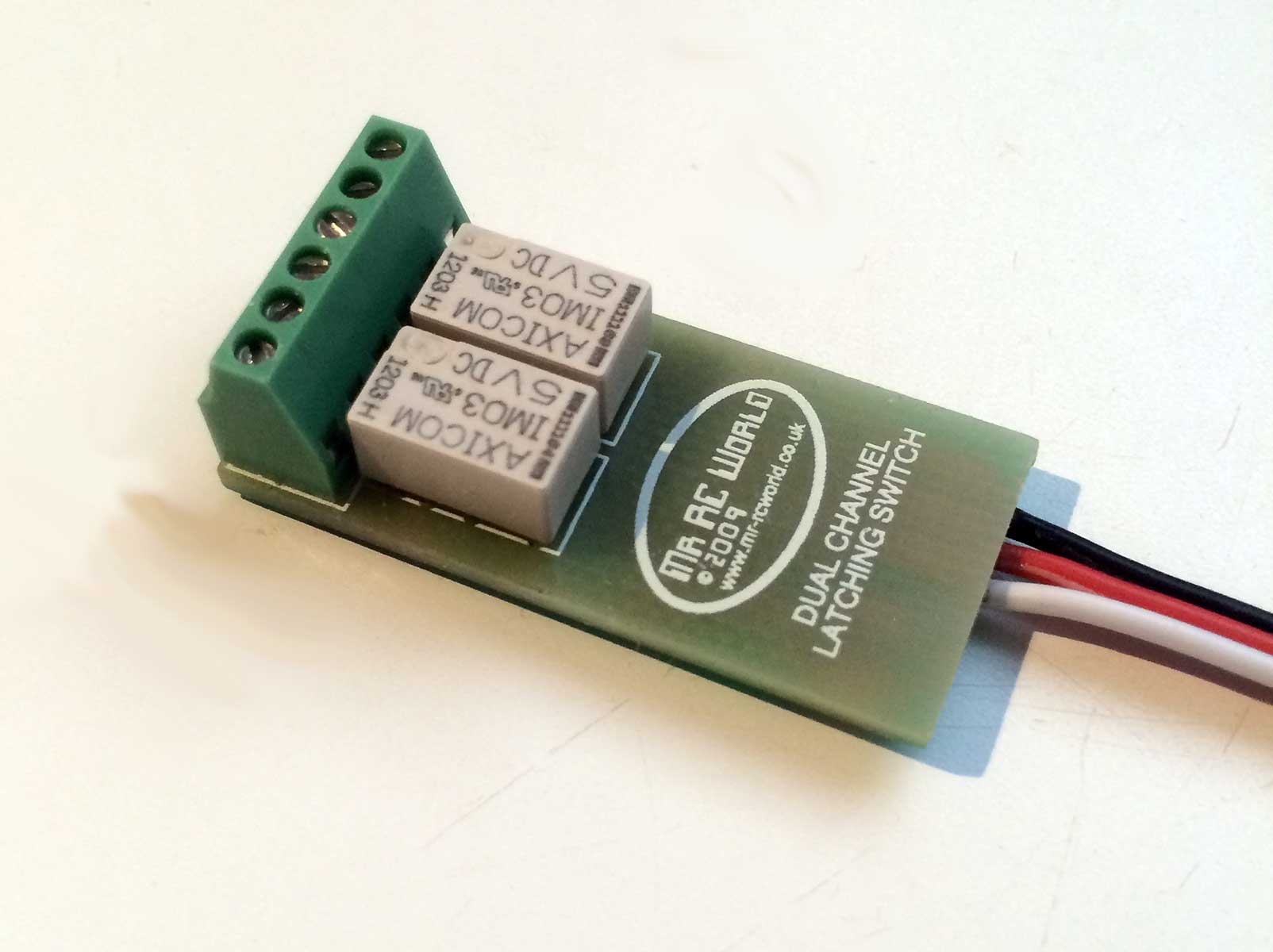

Dual Latching Relay Switch Latch onto this new Product
In stock
£18.99 ×

Introducing another of our latest products in Radio Controlled Switching Controllers, this innovative Module efficiently gives you a Latching Relay Output on both Forward and Reverse Stick Action specifically designed for Low Current Model Motor and Lighting Circuits..

Features

  1. 2A at up to 30v DC Current Capacity
  2. Can Control 2 Separate Circuits from 1 RC Channel
  3. Onboard Operational Regulator.
  4. Can be powered from RX systems up to 16.5v
  5. Onboard Activity Indicators
  6. Outputs are Neutral At Standard 1.37ms - 1.5ms (Centre/Dead Stick)
  7. Frg4 2oz PTH PCB
  8. Full Specification Rohs Components
  9. Lightweight 12g
  10. 36mm x 17mm Footprint


RC Lead 150mm
Weight 12g
Control Voltage 4.8v - 16.5V
Current Draw 91mA Nom (11mA Quiescent)

Adobe Reader mnemonic Download the Product Information Sheet



This is a hand crafted Surface Mount Technology (SMT), professionally designed all British module, built with top quality RoHS (Restriction of Hazardous Substances Directive) high specification components.
RoHS Logo Vector Download


LATCHING RELAY POWER SWITCH



BASIC WIRING DETAILS
