5 Channel Strobe Lighting Kit

5 CHANNEL BEACON LIGHTING KIT

For Emergency Services, Law Enforcement,
Search & Rescue Vehicle or Vessel
Model Cars, Trucks and Boats

		QUALITY MADE BRITISH PRODUCT

FEATURES AND SPECIFICATIONS

1. Single Channel Switchable
2. Beacon Simulated Pulse
3. Available in Blue, Red or Amber
4. Powered entirely from your Rx Circuit
5. 305mm (12") LED Tails
6. 150mm Supply Tail
7. Current Draw 48mA.
8. Small 25mm x 18mm foot print.
9. Ultra Lightweight. Only 8.3g!
10. Simple Safe 'Plug and Play' installation

Download the Product Information Sheet

Yet another hand made, professionally designed British module based upon other RC Lighting Modules we have on sale.
The module is a microprocessor based sequencer powered and switched from a channel on your Remote Control Transmitter/Receiver.

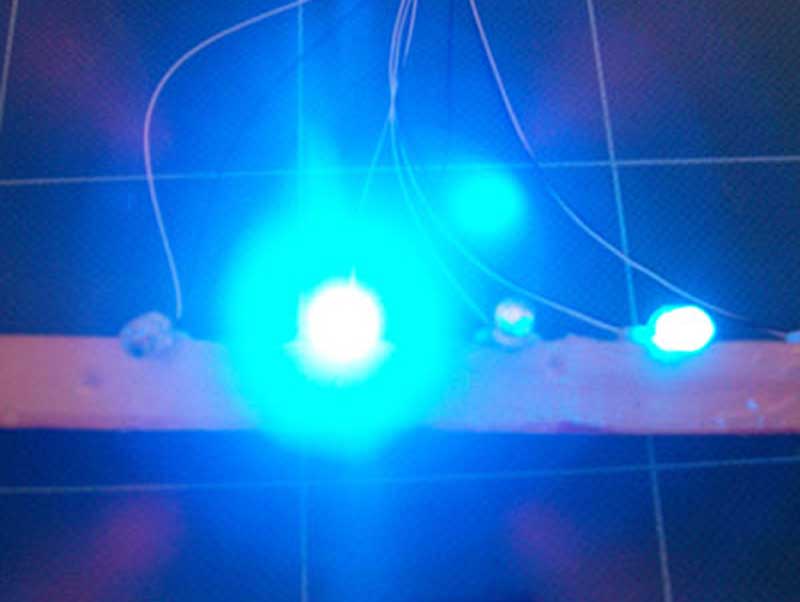

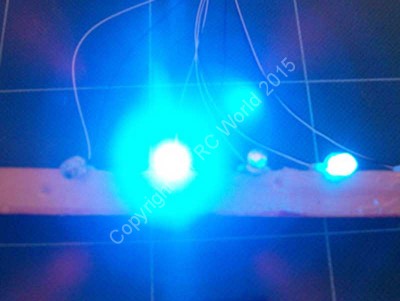

The kit arrives with five (5) 5mm Hi-intensity 24,000 Mcd Blue Strobe Beacons, ramp pulsed at 300mS (roughly 3 times per Second)

All LED’s are connected to 305mm (12.00” ) long Kynar silver plated oxygen free, high conductivity single core microfine fly leads 0.387mm in diameter, which will need to be soldered to the module after installation.

Longer fly-leads can be supplied for a small additional charge. Please contact us first.

Basic soldering skills are essential to connect the fly leads to the Switch Module when it is installed into your model however, if soldering is not one of your better skills, we can supply the wiring pre-connected and ready to install at no additional cost.

The wiring to all Lights (LED's) are colour coordinate to ease installation. Strobes Blue/White/Yellow. The Blacks are common connected to the same terminal on the module.

LED's available in Blue, Red, Orange, Amber/Yellow or Hi-Brite White in 3mm 5mm and 10mm sizes. Please select the required size and colour from the options dropdown on the top right of the page.

The module plugs directly into a switched channel on your receiver and with all the LED’s installed the current draw is approximately 48mA

The entire lighting kit weighs in at a very lean 8.3g
