Engine Sound Generator

In stock
£32.95 ×

ENGINE
SOUND GENERATOR



QUALITY BUILT

BRITISH PRODUCT

FEATURES AND SPECIFICATIONS

  • Weight (inc. Speaker) 25g
  • Voltage 4.4v - 11.8V
  • Current Draw (Active) 70mA

Download the Product Information Sheet


Introducing our latest product in Radio Controlled Model Sound Generators, this remarkable innovative Module reproduces a continuous looped 'Real Time Playback' which gives you the unique, 'Steam Hiss and Metallic Clunk ' sound of a Crosshead/Oscillating Steam Engine familiar to Tug-Boats and Steamers.

The module can be switched On/Off from either a switched Receiver Channel or from the Forward Throttle Joystick using a 'Y' Splitter Lead in tandem with your Motor ESC (available as an optional extra at 99p when ordered with the Module)

An Onboard 'Preset' allows you to adjust the Playback Engine Speed from a very slow idle up to approximately 450RPM to suite your personal requirements.

The Sound Output is from a 68mm ¼W conventional 8ohm loudspeaker which we have found reproduces the correct sound qualities with the minimum of harmonic distortion.

An Onboard Flashing Status LED visible through the clear protective shroud gives you a functionality indication when the module is running,

The module plugs directly into a control channel on your RC Receiver and when installed draws approximately 78mA in active state and 1.4mA in quiescent state

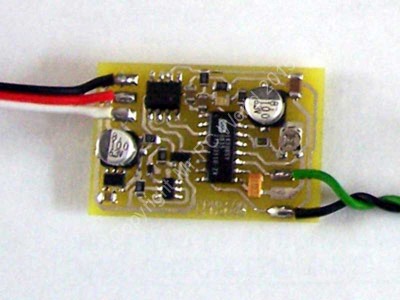

This is a hand crafted Surface Mount Technology (SMT), professionally designed all British module, built with top quality RoHS (Restriction of Hazardous Substances Directive) high specification components. RoHS Logo Vector Download


Video courtesy Bernhard Borg, Denmark "incredible levels of detail"

(you to can have your project featured on our website, please contact us for further information)


Other Engine Sound Modules available are:
(The Demo Recordings can be played from the media players below)

  • Single Cylinder Lister Barge Engine
  • Doxford Opposed-Piston Steam Marine Engine
  • Perkins 460/Skania 638 Marine Diesel (Trawler, Lifeboat, Search and Rescue Vessel)

Together with a multitude of Single Play Fog Horn, Siren, Whistle, Klaxon and Hooter Sounds.

Custom Sound Projects with Playback Sound from your Royalty Free MP3 or WAV file can be programmed at no extra cost. Please contact us for full details.

SOUND SAMPLES


Kindly note the demo sounds have a security tone over-stamp
Weight (inc. packing) 75 g
